无铆连接系统

2016-4-15


您还在做焊接或铆接吗?

省钱 – 仅需1套冲头和下模就可以完成零件的连接!

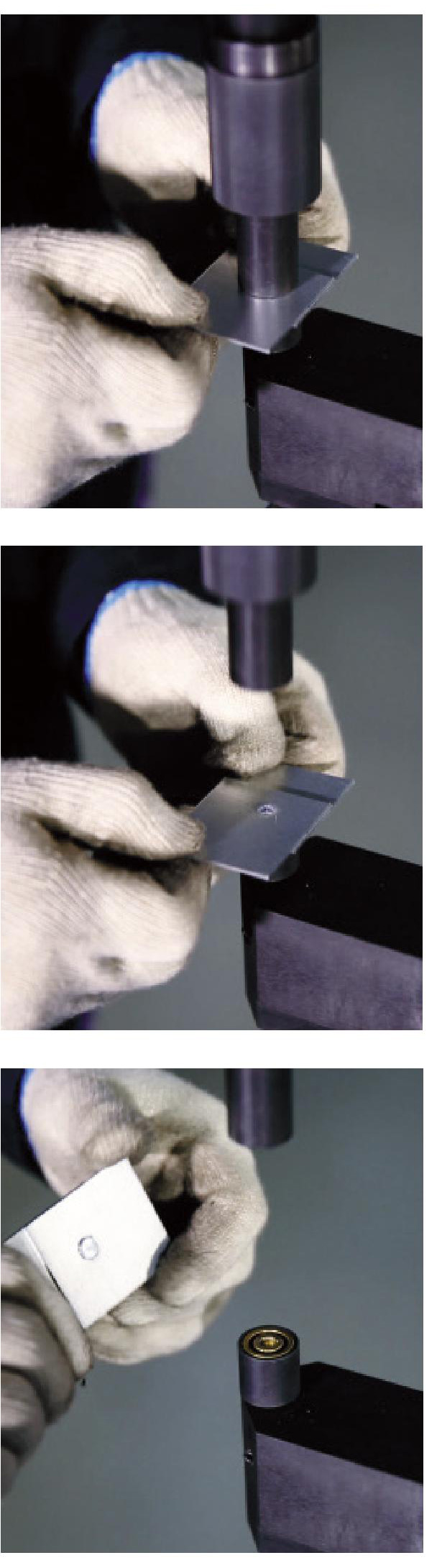

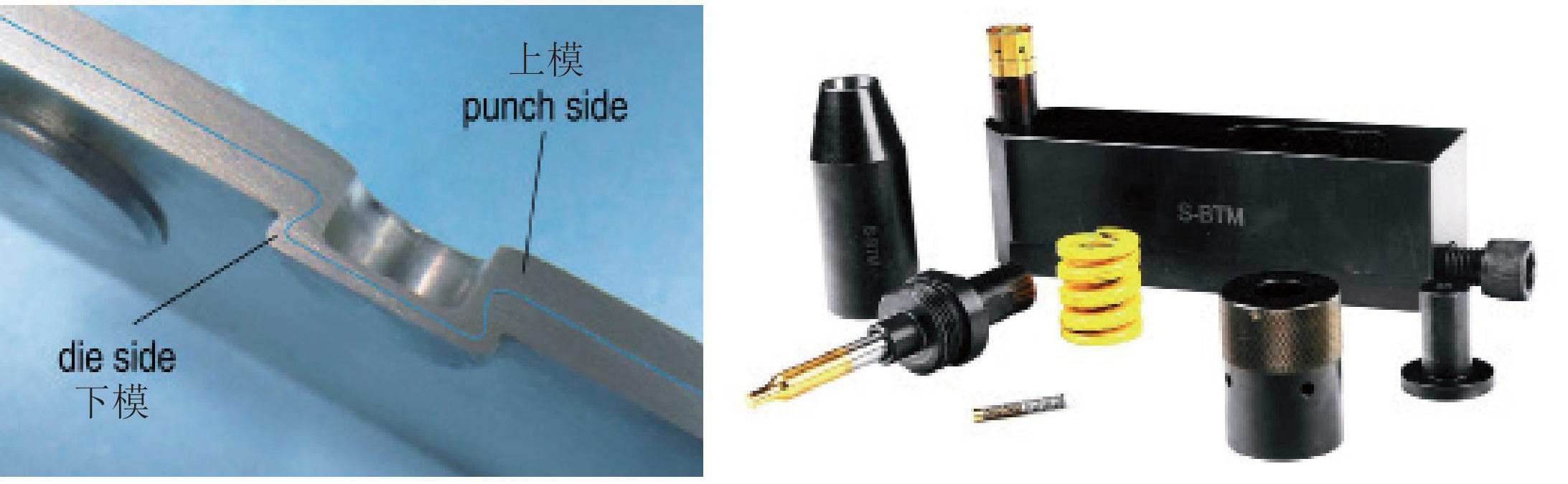

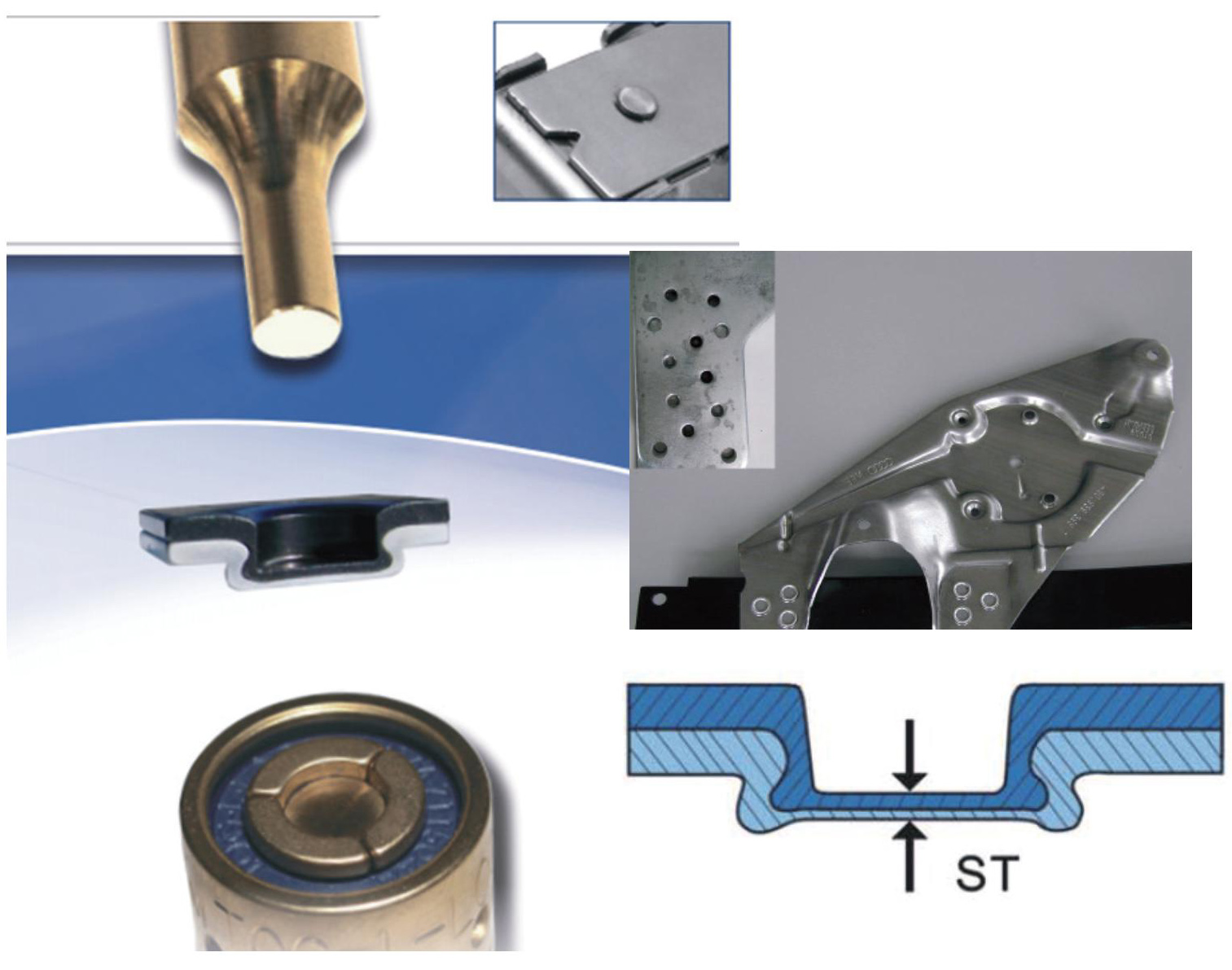

LAG的BTM无铆连接系统通过简单的冲压过程就能让二块板 材“冷焊”在一起,并且无需任何焊材或购买紧固件。通过 这种特殊的冲铆工艺使二块板料拉伸和成型后形成倒钩并紧 密的“粘联””在一起,加工成本大大降低。无铆连接工艺 对于镀锌、彩涂板等带表面涂层的板材相比传统焊接工艺具 有无火花及烟雾污染,板无表面损伤的明显优势!

BTM 的压铆解决方案的一些好处:

• LAG 无铆连接系统具有极稳定的抗拉强度

• LAG 无铆连接可做无损伤检测

• LAG 无铆连接效率高(一个工件通常可以在一秒中完成)

Are you still Welding or Riveting?

SAVE MONEY - Join your parts with a Punch and Die!

LAG and BTM related clinching tools join sheet metal without the expense      of welding or purchased fasteners by simply joining the part’s own material! Assembly cost is significantly reduced by drawing and forming the part material into an interlock. Join galvanized, pre-painted, or even dissimilar metal combinations using an environmentally friendly process that does not produce sparks, harmful fumes or damaging heat!

Some Benefits of BTM’s Clinching Solutions:

•LAG Clinch Joints system are consistently strong

•LAG Clinch Joints are Non-destructively checked

•LAG Clinching is fast (a joint can typically be created in under one second).



LAG 无铆连接 BTM 工具订购及要求

LAG Joint BTM Tooling Set order specification Request


1. 请提供需连接的板材的种类、厚度,典型工件图,鉴于不同工厂的板料有一定差异,请提供最少10件样件 给我们以便我们按照贵司的材料选择最佳的BTM工具型号 一次性购买我们LAG无铆连接BTM工具组合,包括:BTM冲模、凹模和冲模座及凹模座


1. Please specify your joint parts material, drawing and supply min 10 PCS sample to LAG for define BTM joint tooling.

A one time purchase of BTM Punch,die and punch/die holder is included for LAG Joint BTM Tooling Set



BTM无铆连接工具适用于厚度0.6mm-2.5mm碳钢及不锈钢

Self clinch mechanical joint tooling set for mild steel sheet thickness from 0,6 mm to 2,5 mm, for Stainless steel sheet thickness on request

JOONT TOOLING

PART NUMBER

订货号

SHEET MATERIAL

板材材质

STRENGTHEN

抗拉强度

THINKNESS

厚度

PUNCH

冲模

S-BTM182
MS 口 SS 口 AL 口


DIE

凹模

S-BTM183
MS 口 SS 口 AL 口


PUNCH/DIE HOLDDER SET

冲凹模座组件

S-BTM181




2.最小边距要求

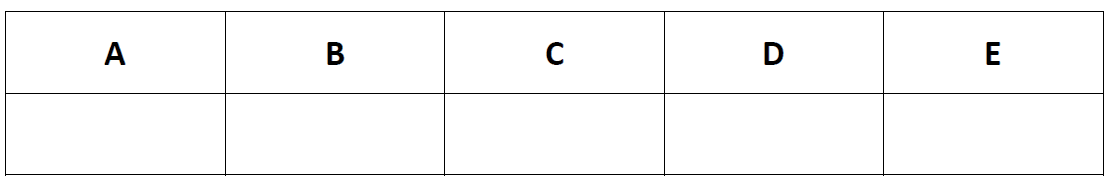

Please specify LAG Joint Minium Distance Request
